Micro Servos

Single LiPo Cell Servos

These servos are designed to work on the voltage range from a single LiPo cell (3V - 4.2V). Most have a specified maximum working voltage of 5V; some customers report that they work OK on 5V, but this cannot be guaranteed. If you want to use them on a 5V system (e.g. BEC output from 2S ESC), then a power silicon diode (e.g. IN4001) should be used in the positive lead from BEC to receiver/servos to drop the voltage to approximately 4.3V.


1.7gm Micro Digital Servo

An ultra micro rotary output servo for use on single LiPo cell R/C systems. Weighs 2.0gm complete with output disk, wires and connector.

Supplied with 3 types of output arm: single, double & cross. The single arm is 8.5mm from centre of pivot to the end of the arm, the double arm is 10mm from centre of pivot and 20mm overall diameter, the cross arm is 14mm in diameter and 7mm in radius.

Available with JST-SH (1mm) and Molex Picoblade (1.25mm) connectors.

Specification,
Size (LxWxH):14 x 6.2 x 18 mm
Weight:1.7 gm
Torque:0.075 kg/cm @ 4.2V
Speed:0.05 sec/60° @ 4.2V

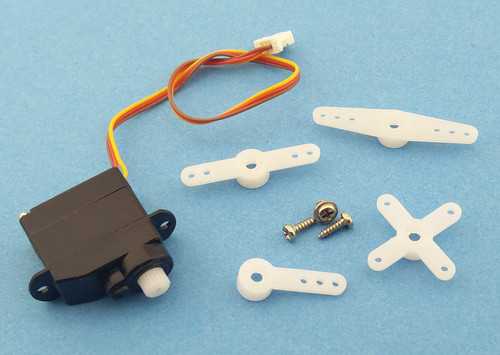

2.2gm Micro Servo

A micro conventional rotary output servo for use on single LiPo cell R/C systems. Weighs 2.6gm complete with output disk and 100mm wires and is fitted with a Molex 1.25mm pin space connector.

Available with JST-SH (1mm) and Molex Picoblade (1.25mm) connectors.

Specification,
Size (LxWxH):16 x 8 x 20 mm
Weight:2.5 gm
Torque:0.2 kg/cm @ 3.7V
Speed:0.08 sec/60° @ 3.7V

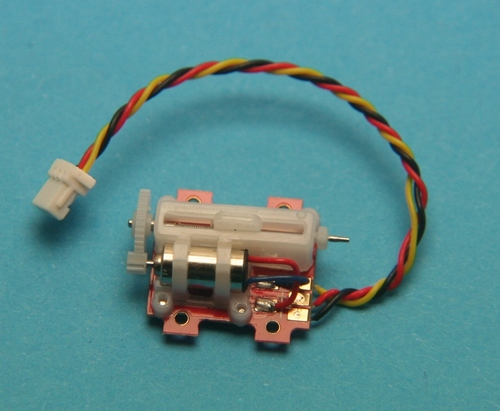

'SuperMicro' Micro 1.4g Linear Servo

A micro linear servo for single LiPo cell operation. Supplied with 60mm lead and JST-SH plug. Compatible with Spektrum AR6410 and DT Rx33.

The operating force is 35g and the speed is 0.12s at 4.2V for a linear travel of 8mm.

Specification,
Size (LxWxH):18.1 x 15.2 x 7.8 mm
Weight:1.4 gm
Force:35 gm @ 4.2V
Speed:0.12 sec end-to-end @ 4.2V

£ 7.80

'SuperMicro' Micro 1.8g Long Throw Linear Servo

A micro long throw linear servo with 2 x ball-bearings. Designed for single LiPo cell operation and supplied with 60mm lead and JST-SH plug. Compatible with Spektrum AR6410 and DT Rx33.

The operating force is 45g and the speed is 0.14s at 4.2V for a linear travel of 10mm.

Specification,
Size (LxWxH):24 x 16 x 8 mm
Weight:1.8 gm
Force:45 gm @ 4.2V
Speed:0.14 sec end-to-end @ 4.2V

£ 9.45

5V-6V Servos


Emax ES9251 2.5g Digital Servo

Specification,
Size (LxWxH):18.02 x 7.91 x 16.8 mm
Weight:2.5 gm
Torque:0.27 kg/cm @ 4.8V
Speed:0.08 sec/60° @ 4.8V

A micro yet powerful Emax 2.5g servo. The ES9251 features 0.27Kg stall torque and 4.8v operation. Ideal for small indoor models and small park flyers. Fitted with JR/Hitec plug and also available with JST-SH, Molex Picoblade or JST-ZH connectors.

Please make a selection from the menu below appropriate for your receiver - if in doubt, contact us before placing an order. Note: JST-ZH with positive centre pin is not widely used by R/C manufacturers, the common configuration is negative on the centre pin.

Price from £6.35


Blue Arrow D03013 (3g) Metal Gear Servo

Ideal for indoor models and small park flyers, fast, smooth and powerful. Fitted with JST-ZH connector and supplied with adapter leads for Molex 1.25mm, JST-SH and JR/Hitec plugs.

Specification,
Size (LxWxH):20 x 8.3 x 19 mm
Weight:3 gm
Torque:0.65 kg/cm @ 5V
Speed:0.06 sec/60° @ 5V

£ 6.95

Emax ES9051 4.3g Digital Servo

A small and lightweight yet powerful Emax 4.3gram servo. The ES9051 features a strong 0.8Kg stall torque rating at 4.8v. Ideal for larger indoor models and small park flyers, fast, smooth and powerful. Fitted with JR/Hitec connector.

Specification,
Size (LxWxH):19.75 x 8.34 x 26.3 mm
Weight:4.3 gm
Torque:0.8 kg/cm @ 4.8V
Speed:0.09 sec/60° @ 4.8V

£ 4.60

HXT500 5gm Mini Servo

Specification,
Size (LxWxH):21.3 x 11.5 x 22 mm
Weight:6.2 gm
Torque:0.6 kg/cm @ 4.8V
Speed:0.08 sec/60° @ 4.8V

£ 3.95

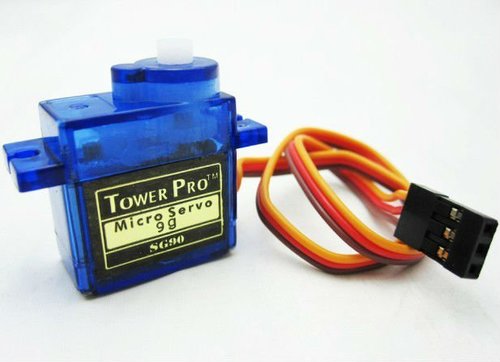

Tower Pro SG90 9g Servo

A small, lightweight servo with high output power. Ideal for controlling model railway turnouts and signals.

Specification,
Size (LxWxH):23 x 12.2 x 29 mm
Weight:9 gm
Torque:1.8 kg/cm @ 4.8V
Speed:0.1 sec/60° @ 4.8V

£ 2.95
