Speakers

40x20mm | 40x28mm | 57x23mm | Miniature Loudspeaker 28mm Round 8 Ohm | Round 36mm | Round 45mm | Mtroniks 80mm


Click on image for a larger version.

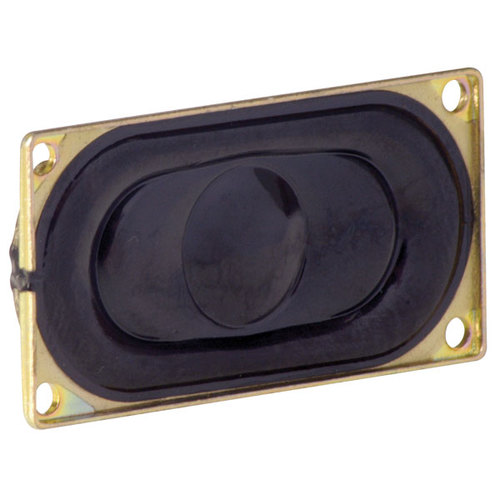

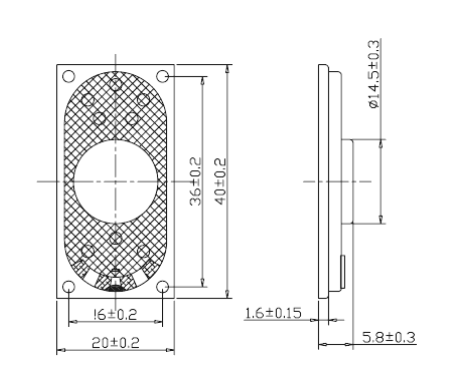

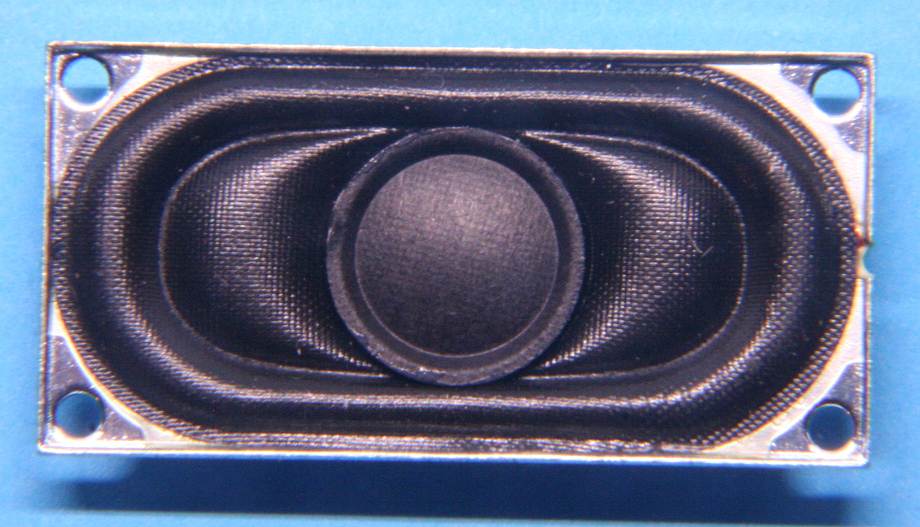

Miniature Rectangular Loudspeaker 40 x 20mm
(Top | 40x28mm | 57x23mm | Miniature Loudspeaker 28mm Round 8 Ohm | Round 36mm | Round 45mm | Mtroniks 80mm)

A miniature low profile rectangular loudspeaker with high power handling capacity, available in 4Ω and 8Ω versions. Most sound cards specify use of a 8Ω speaker, lower impedance could cause the audio amplifier to overheat and shut down; best to use 2 of the 4Ω speakers wired in series.

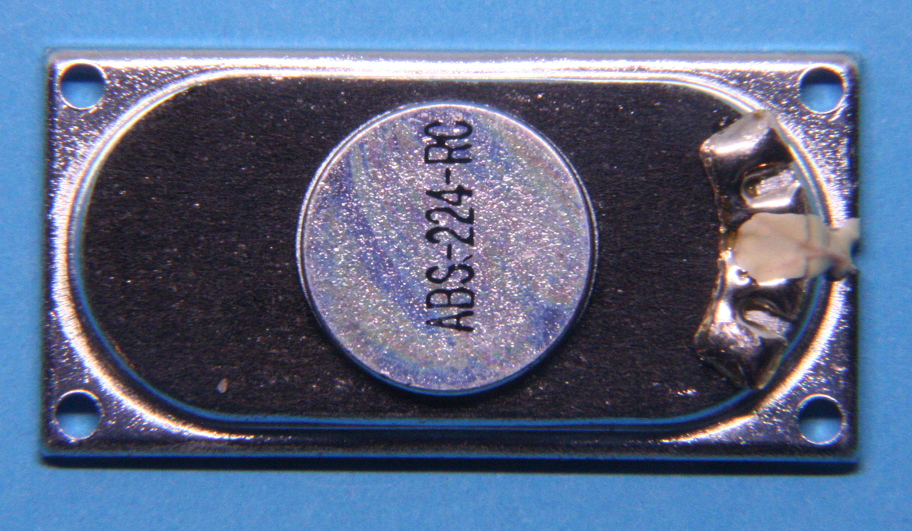

Connections are via solder pads on the rear of the speaker (see More Images tab).

£ 2.65 Select type:

Click on image for a larger version.

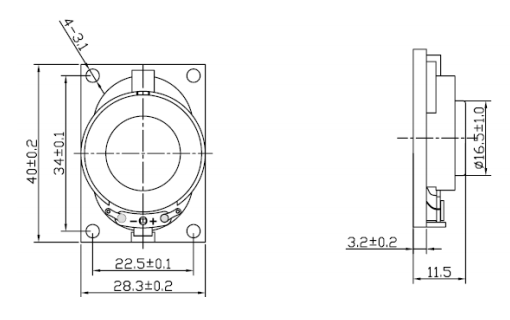

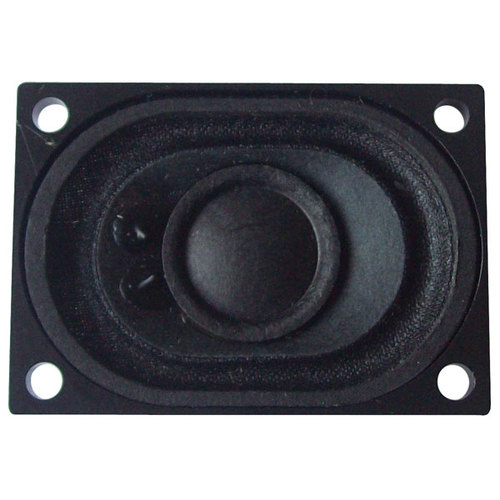

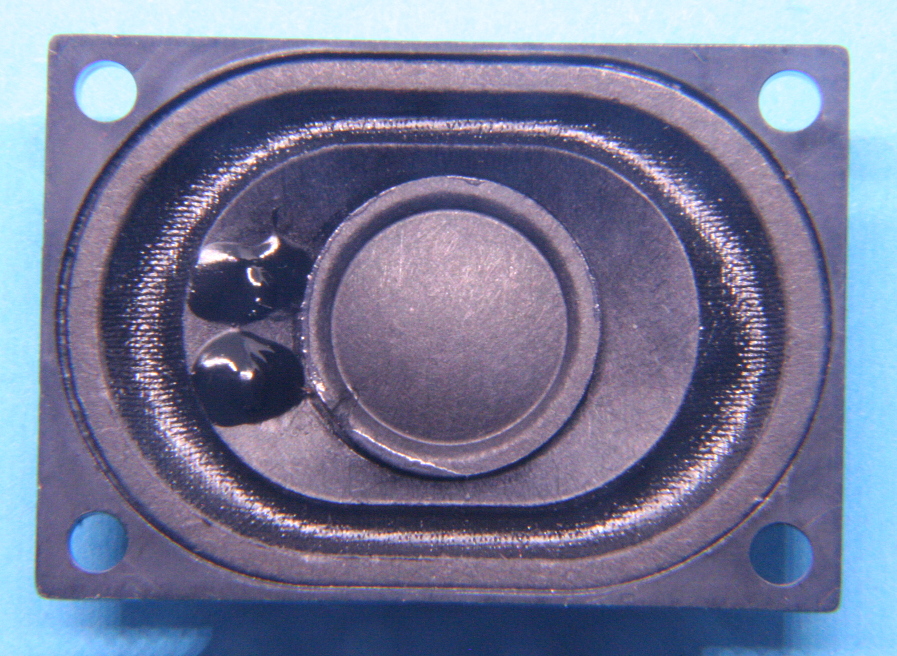

Miniature Rectangular Loudspeaker 40 x 28mm 4 ohm
(Top | 40x20mm | 57x23mm | Miniature Loudspeaker 28mm Round 8 Ohm | Round 36mm | Round 45mm | Mtroniks 80mm)

A miniature 4Ω, 4W max, loudspeaker. Most sound modules specify use of a 8Ω speaker, a lower impedance speaker used at high volume could cause the audio amplifier to overheat and shut down. Using this 4Ω speaker should be OK at low volume and with plenty of air circulation around the sound module; if in doubt, use 2 of these wired in series.

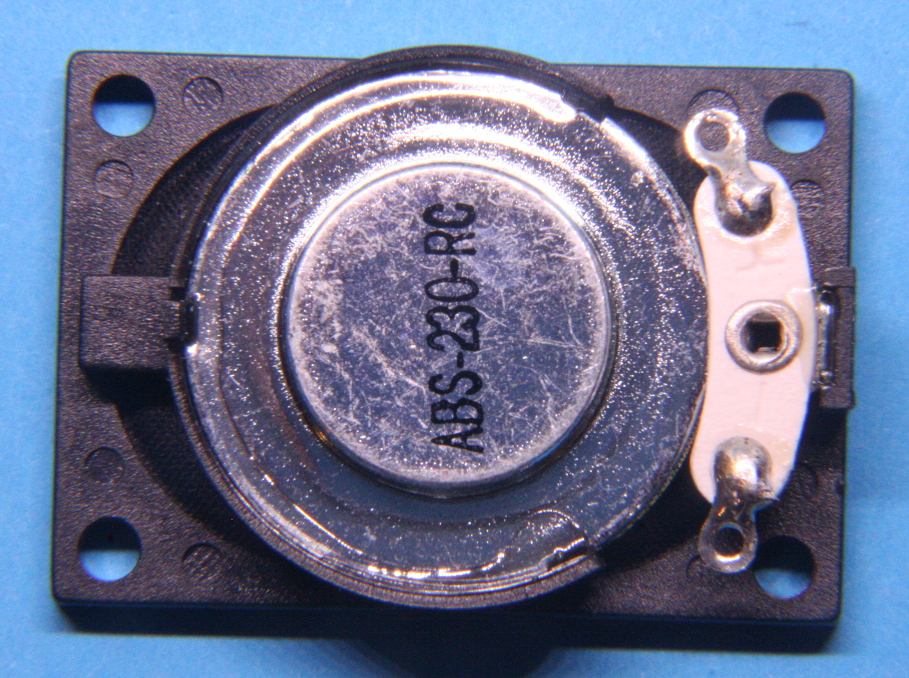

Connections are via solder tags on the rear of the speaker (see More Images tab).

£ 4.30

Click on image for a larger version.

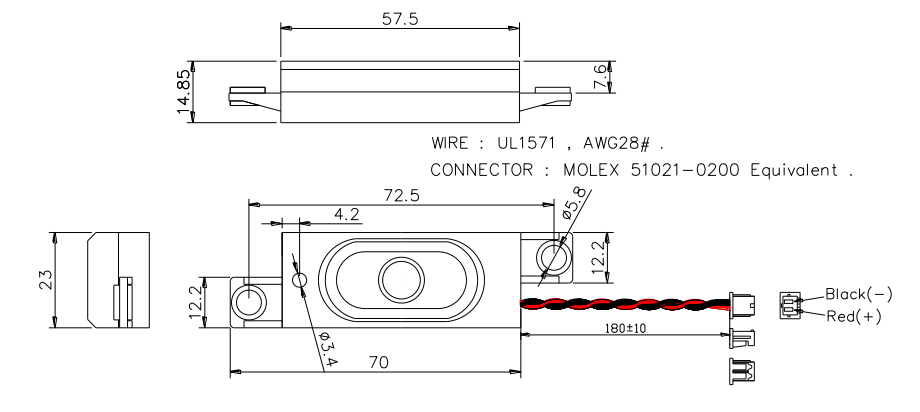

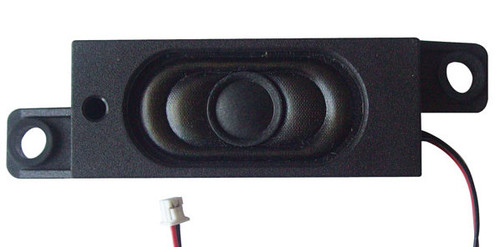

Miniature Loudspeaker Rectangular 57.5 x 23mm
(Top | 40x20mm | 40x28mm | Miniature Loudspeaker 28mm Round 8 Ohm | Round 36mm | Round 45mm | Mtroniks 80mm)

A miniature 8 ohm rectangular loudspeaker 2w max, with mounting lugs and 180mm lead.

The lead is terminated with a 2 pin Molex Picoblade plug.

£ 7.20

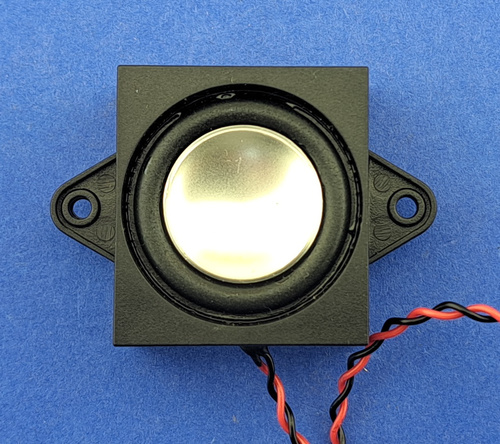

Miniature Loudspeaker 28mm Round 8 Ohm
(Top | 40x20mm | 40x28mm | 57x23mm | Round 36mm | Round 45mm | Mtroniks 80mm)

A miniature low profile round loudspeaker with 2W power handling capacity.

£ 2.65

Click on image for a larger version.

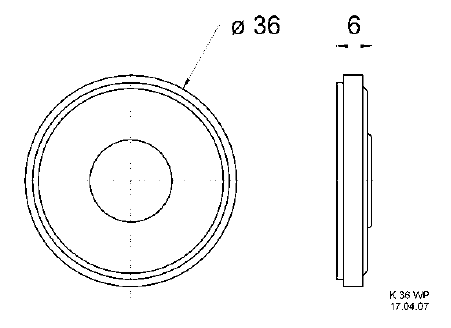

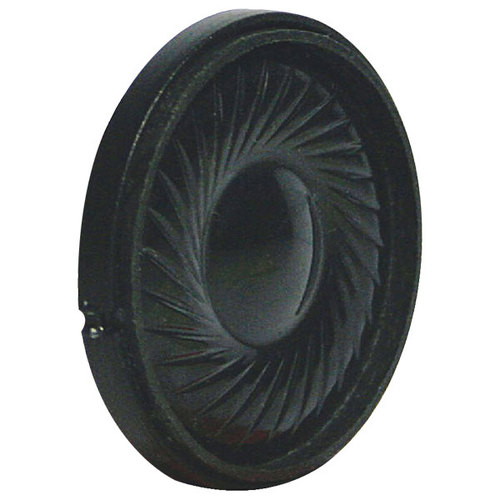

Miniature Loudspeaker Round 36mm
(Top | 40x20mm | 40x28mm | 57x23mm | Miniature Loudspeaker 28mm Round 8 Ohm | Round 45mm | Mtroniks 80mm)

A miniature waterproof 8 ohm round loudspeaker 1w nominal, 2w max. Its 6mm thickness makes it suitable for applications where slim construction is needed. Being weatherproof, it is particularly suited to outdoor use.

£ 4.65

Click on image for a larger version.

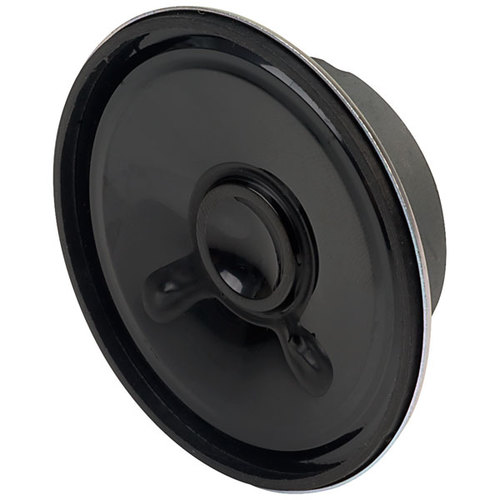

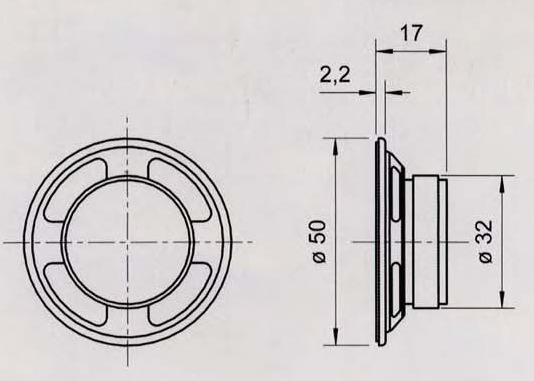

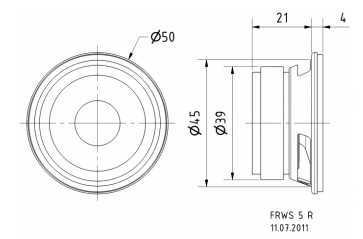

Miniature Loudspeaker Round 50mm
(Top | 40x20mm | 40x28mm | 57x23mm | Miniature Loudspeaker 28mm Round 8 Ohm | Round 36mm | Mtroniks 80mm)

A miniature 8 ohm round loudspeaker 4w nominal, 10w max.

This is an ideal size speaker for fitting into a 50mm internal diameter plastic tube as a baffle.

£ 11.75

Click on image for a larger version.

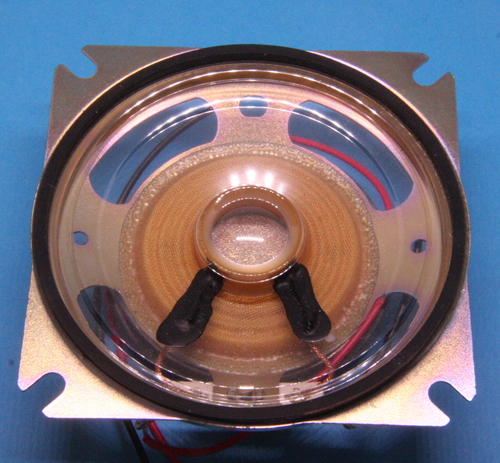

Mtroniks Waterproof Loudspeaker Round 80mm
(Top | 40x20mm | 40x28mm | 57x23mm | Miniature Loudspeaker 28mm Round 8 Ohm | Round 36mm | Round 45mm)

A robust waterproof 8 ohm 12W speaker as used in the Mtroniks digiSound sound module sets. Fitted with 300mm wires and 2pin 2.54mm pitch plug.

£ 10.95
