Spektrum DSM2/DSMX Transmit Modules

DT Tx1 | DT Tx2 | CB2 | Orange DIY | Orange Fut


Click on image for a larger version.
DT Tx1 Short Range DSM2 Transmitter
(Top | DT Tx2 | CB2 | Orange DIY | Orange Fut)

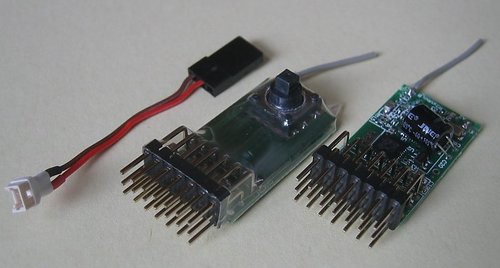

Tx1 is a simple short-range DSM2 transmitter. It is available in three versions: 'Tx1-J' with a built-in joystick allowing it to operate as a complete hand-held transmitter; 'Tx1-M' as a module for converting older transmitters to 2.4GHz DSM2 and 'Tx1-K1' which accepts a RS-232 control input. The 'M' version requires a PPM input, is switchable between JR and Futaba channel ordering and requires some DIY skills to install.

Download the user instuctions for: Tx1-J, Tx1-M or Tx1-K1.

Select type:

A battery lead (BL1) is available for connection of either Tx1 module to a single cell LiPo with 'UM' style connector:


Click on image for a larger version.
DT Tx2 DSM2 Transmitter Core
(Top | DT Tx1 | CB2 | Orange DIY | Orange Fut)

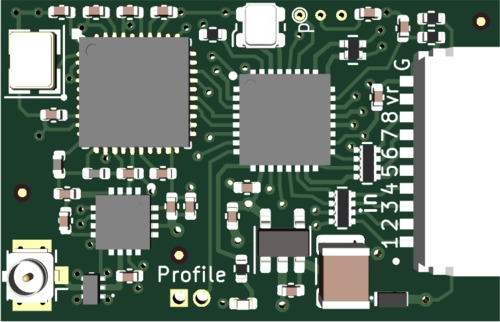

Tx2 is module which can be used to make a DSM2 transmitter with 7 channels. The range is suitable for indoors and small outdoor sites. Each channel is controlled by a variable resistor or switch. The firmware supports trims, reversing, variable throws, mixing and inertia. It is a short-range transmitter that works with all DSM2 receivers.

Tx2 is ideal for DIY projects; it requires soldering external resistors, potentiometers, switches, battery and LED. It has features for control of model vehicles, especially trains: speed, direction, inertia and lights.

Tx2 supports several profiles which provide a combination of analogue and digital inputs. Most of these are designed for use in the Tx2x transmitters. Tx2 is supplied configured with Profile 1 and this can easily be changed. Click on the Profiles tab for details.

£ 12.00

Click on image for a larger version.
CB2 Transmitter Controller
(Top | DT Tx1 | DT Tx2 | Orange DIY | Orange Fut)

CB2 is a transmit controller. It provides the same functionality as Tx2 but does not transmit. It outputs a 7 channel PPM stream with 3.1V swing and idle high. It is intended for use with a high power RF module to make a longer range transmitter. The image shows CB2 connected to an Orange RF module (this must be obtained separately).

CB2 can be used to upgrade any of the Tx2x model train controllers to higher power. Simply replace the Tx2 with a CB2 and connect to a Spektrum or Orange RF module (e.g. the Orange 2.4GHz DSM2/DSMX DIY Transmit Module).

£ 12.00

Click on image for a larger version.
Orange 2.4GHz DSM2/DSMX DIY Transmit Module
(Top | DT Tx1 | DT Tx2 | CB2 | Orange Fut)

The Orange DIY transmit module provides a simple way of building a full-range (100mW output) 2.4GHz R/C transmitter. It requires a PPM input signal - e.g. from the DT CB2 or the trainer socket of a non-2.4GHz transmitter.

As supplied, the module expects JR/Spektrum input channel ordering (TAER). The firmware can be be reloaded with a version that maps Futaba input channel order (AETR) and outputs JR/Spektrum channel order.

Input Channel Order:

There are currently 0 options selected. Click deselect to cancel all option selections.

Base Price: £ 39.00 Total Price: £ 39.00
Temporarily out of stock. Please email to register interest.

Click on image for a larger version.
Orange 2.4GHz DSM2/DSMX Futaba Transmit Module
(Top | DT Tx1 | DT Tx2 | CB2 | Orange DIY)

The Orange Futaba transmit module converts a 35MHz or 40MHz transmitter to 2.4GHz DSM2/DSMX. It plugs in to the socket on the back of several Futaba transmitters (e.g. FF7, FF8) but can also be wired internally to convert a non-module type transmitter.

As supplied, the module generates an RF signal with the same channel order as the input signal. That means the output, when used with a Futaba transmitter, will be (aileron, elevator, throttle, rudder) - i.e. incompatible with Spektrum receivers, especially those that have a fail-safe only on the throttle (channel 1). The module firmware can be be reloaded with a version that performs channel mapping so that Futaba input (AETR) will be output as JR/Spektrum (TAER).

Input Channel Mapping:

There are currently 0 options selected. Click deselect to cancel all option selections.

Base Price: £ 36.00 Total Price: £ 36.00
