Micro Servos

1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics

Single LiPo Cell Servos

(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

These servos are designed to work on the voltage range from a single LiPo cell (3V - 4.2V). Most have a specified maximum working voltage of 5V; some customers report that they work OK on 5V, but this cannot be guaranteed. If you want to use them on a 5V system (e.g. BEC output from 2S ESC), then a power silicon diode (e.g. IN4001) should be used in the positive lead from BEC to receiver/servos to drop the voltage to approximately 4.3V.


Click on image for a larger version.
1.7gm Micro Digital Servo
(Top | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

An ultra micro rotary output servo for use on single LiPo cell R/C systems. Weighs 2.0gm complete with output disk, wires and connector.

Supplied with 3 types of output arm: single, double & cross. The single arm is 8.5mm from centre of pivot to the end of the arm, the double arm is 10mm from centre of pivot and 20mm overall diameter, the cross arm is 14mm in diameter and 7mm in radius.

Available with JST-SH (1mm) and Molex Picoblade (1.25mm) connectors.

Specification,
Size (LxWxH):14 x 6.2 x 18 mm
Weight:1.7 gm
Torque:0.075 kg/cm @ 4.2V
Speed:0.05 sec/60° @ 4.2V

Select Connector Type:

Click on image for a larger version.
2.2gm Micro Servo
(Top | 1.7gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

A micro conventional rotary output servo for use on single LiPo cell R/C systems. Weighs 2.6gm complete with output disk and 100mm wires and is fitted with a Molex 1.25mm pin space connector.

Available with JST-SH (1mm) and Molex Picoblade (1.25mm) connectors.

Specification,
Size (LxWxH):16 x 8 x 20 mm
Weight:2.5 gm
Torque:0.2 kg/cm @ 3.7V
Speed:0.08 sec/60° @ 3.7V

Select Connector Type:

Click on image for a larger version.
'SuperMicro' Micro 1.4g Linear Servo
(Top | 1.7gm | 2.2gm | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

A micro linear servo for single LiPo cell operation. Supplied with 60mm lead and JST-SH plug. Compatible with Spektrum AR6410 and DT Rx33.

The operating force is 35g and the speed is 0.12s at 4.2V for a linear travel of 8mm.

Specification,
Size (LxWxH):18.1 x 15.2 x 7.8 mm
Weight:1.4 gm
Force:35 gm @ 4.2V
Speed:0.12 sec end-to-end @ 4.2V

£ 7.80
Temporarily out of stock. Please email to register interest.

Click on image for a larger version.
'SuperMicro' Micro 1.8g Long Throw Linear Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

A micro long throw linear servo with 2 x ball-bearings. Designed for single LiPo cell operation and supplied with 60mm lead and JST-SH plug. Compatible with Spektrum AR6410 and DT Rx33.

The operating force is 45g and the speed is 0.14s at 4.2V for a linear travel of 10mm.

Specification,
Size (LxWxH):24 x 16 x 8 mm
Weight:1.8 gm
Force:45 gm @ 4.2V
Speed:0.14 sec end-to-end @ 4.2V

£ 9.45

5V-6V Servos

(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

Click on image for a larger version.
Emax ES9251 2.5g Digital Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

Specification,
Size (LxWxH):18.02 x 7.91 x 16.8 mm
Weight:2.5 gm
Torque:0.27 kg/cm @ 4.8V
Speed:0.08 sec/60° @ 4.8V

A micro yet powerful Emax 2.5g servo. The ES9251 features 0.27Kg stall torque and 4.8v operation. Ideal for small indoor models and small park flyers. Fitted with JR/Hitec plug and also available with JST-SH, Molex Picoblade or JST-ZH connectors.

Please make a selection from the menu below appropriate for your receiver - if in doubt, contact us before placing an order. Note: JST-ZH with positive centre pin is not widely used by R/C manufacturers, the common configuration is negative on the centre pin.

Connecto:

Base Price: £ 6.35 Total Price: £ 6.35

Blue Arrow D03013 (3g) Metal Gear Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

Ideal for indoor models and small park flyers, fast, smooth and powerful. Fitted with JST-ZH connector and supplied with adapter leads for Molex 1.25mm, JST-SH and JR/Hitec plugs.

Specification,
Size (LxWxH):20 x 8.3 x 19 mm
Weight:3 gm
Torque:0.65 kg/cm @ 5V
Speed:0.06 sec/60° @ 5V

£ 6.95

Click on image for a larger version.
Emax ES9051 4.3g Digital Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

A small and lightweight yet powerful Emax 4.3gram servo. The ES9051 features a strong 0.8Kg stall torque rating at 4.8v. Ideal for larger indoor models and small park flyers, fast, smooth and powerful. Fitted with JR/Hitec connector.

Specification,
Size (LxWxH):19.75 x 8.34 x 26.3 mm
Weight:4.3 gm
Torque:0.8 kg/cm @ 4.8V
Speed:0.09 sec/60° @ 4.8V

£ 4.60
Temporarily out of stock. Please email to register interest.

Click on image for a larger version.
HXT500 5gm Mini Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

Specification,
Size (LxWxH):21.3 x 11.5 x 22 mm
Weight:6.2 gm
Torque:0.6 kg/cm @ 4.8V
Speed:0.08 sec/60° @ 4.8V

£ 3.95

Click on image for a larger version.
Tower Pro SG90 9g Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

A small, lightweight servo with high output power. Ideal for controlling model railway turnouts and signals.

Specification,
Size (LxWxH):23 x 12.2 x 29 mm
Weight:9 gm
Torque:1.8 kg/cm @ 4.8V
Speed:0.1 sec/60° @ 4.8V

£ 2.95

Click on image for a larger version.
Emax ES08MDII 12g Metal Gear Digital Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

A small yet strong servo with metal gears. High torque output. Suitable for larger park flyers and ideal for use on the regulator for small live steam locos.

Specification,
Size (LxWxH):23.6 x 11.5 x 27.75 mm
Weight:12 gm
Torque:1.6 kg/cm @ 4.8V
Speed:0.12 sec/60° @ 4.8V

£ 7.95

Click on image for a larger version.
Emax ES3352 12.4g Metal Gear Digital Servo
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

A thin strong servo with metal gears and high torque output. Slight smaller than the ES08MD and with more torque. Ideal for confined space installations.

Specification,
Size (LxWxH):23.17 x 9.17 x 24.05 mm
Weight:12.4 gm
Torque:2.4 kg/cm @ 4.8V
Speed:0.12 sec/60° @ 4.8V

£ 11.95

Servo Spares

(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear | AS2000L Mechanics)

Servo Mount Tape (Thin)
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Pinion & Drive Gear | AS2000L Mechanics)

Thin foam sticky pads for mounting small servos or other R/C gear.

£ 0.95

Replacement Pinion & Drive Gear for AR6400 / AS2000 (EFLH1068)
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | AS2000L Mechanics)

Replacement pinion and drive gear for the Spektrum AR6400 receiver, AS2000 servo (and variants).

£ 1.70

Click on image for a larger version.

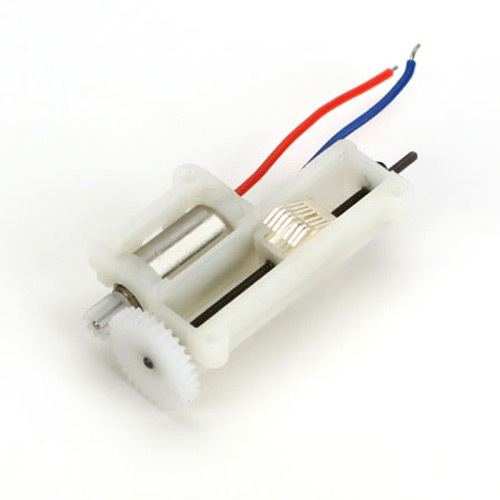

Replacement Servo Mechanics for AR6400L / AS2000L (SPM6832)
(Top | 1.7gm | 2.2gm | 1.4g Lin | 1.8g Lin | Emax ES9251 | BA 3gm MG | Emax ES9051 | HXT500 | SG90 | ES08MDII | ES3352 | Servo Tape | Pinion & Drive Gear)

Replacement long throw servo unit for the AR6400L. Requires soldering to fit.

£ 11.75
